Projects – Aquapark Wrocław

Due to our exceptional knowledge and experience, we have been selected as a provider of industrial automation services for the Aquapark Wrocław.

For several years we have been performing service work related to the Simatic S7-300 PLC control systems regulating water technology.

In two years we have executed a comprehensive modernisation of the control system of the air handling units. All these works were performed with continuous supply of control cabinets and working air handling units. We replaced the existing SAUTER control system with modern industrial PLC Simatic S7-300 and operator panels HMI TP900 and TP1200.

Applied devices:

  • 6ES7153-4AA01-0XB0 SIMATIC ET 200M, INTERFACE MODULE IM 153-4 PN IO
  • ES7314-6EH04-0AB0 SIMATIC S7-300, COMPACT CENTRAL UNIT CPU 314C-2 PN/DP
  • 6ES7321-1BP00-0AA0 SIMATIC S7-300, BINARY INPUT MODULE SM 321, 64 INPUTS/24V DC
  • 6ES7322-1BH01-0AA0 SIMATIC S7-300, BINARY OUTPUT MODULE SM 322, 16 OUTPUTS, 24V DC/0.5A
  • 6ES7322-1BL00-0AA0 SIMATIC S7-300, BINARY OUTPUT MODULE SM 322, 32 OUTPUTS, 24V DC/0.5A
  • 6ES7331-1KF02-0AB0 SIMATIC S7-300, ANALOG INPUT MODULE SM 331, 8 INPUTS, RESOLUTION 13 BITS
  • 6ES7332-5HF00-0AB0 SIMATIC S7-300, ANALOG OUTPUT MODULE SM 332, 8 OUTPUTS, U/I RANGE
  • 6GK7343-1CX10-0XE0 SIMATIC NET, COMMUNICATION PROCESSOR CP 343-1 LEAN

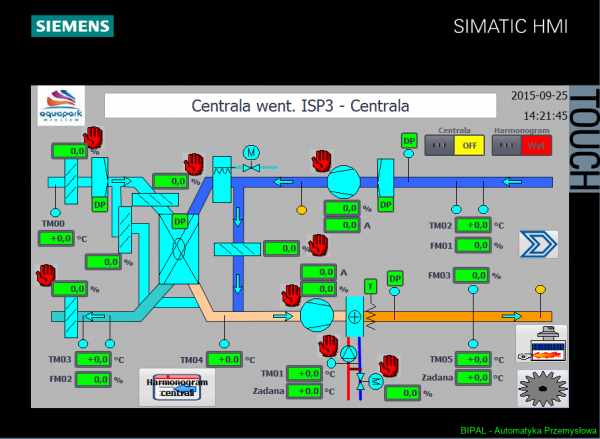

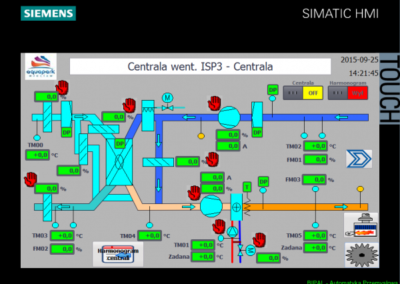

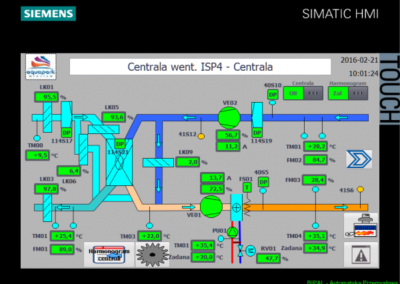

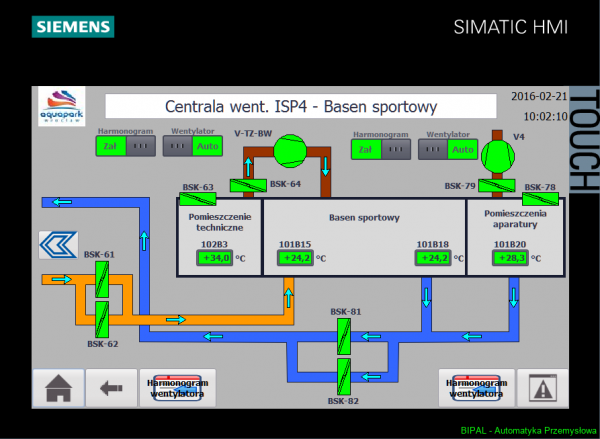

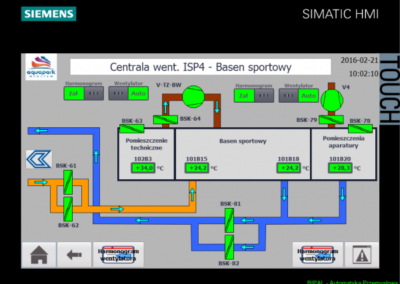

The pictures below illustrate the work performed.
